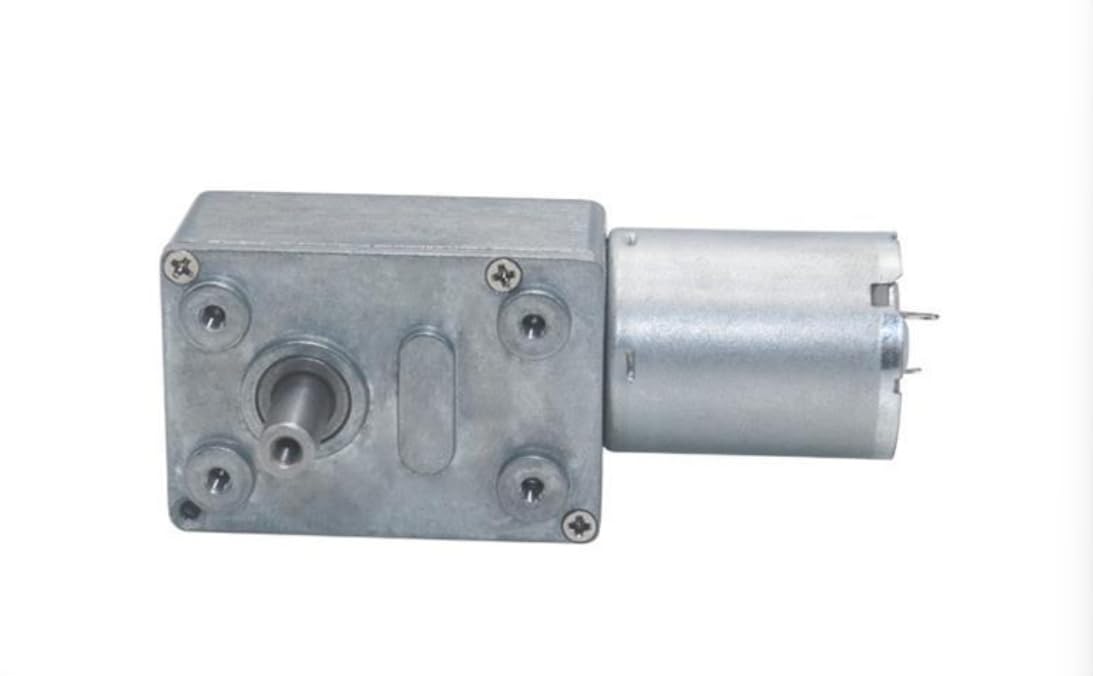

JGY-370 6V12V24V 6-150rpm DC Worm Gear Reduction Motor high Torque Motor mini Turbine Worm Gear self-Locking DIY mini Gear Motor (24V150 RPM 0.2KG. CM Reduction Ratio 40)

This JGY370 dual-output shaft worm gear DC reduction motor integrates a worm gear system and all-metal construction, delivering a maximum torque of 45 Kg·cm (2.5 N·m) and power-off self-locking for stable position retention. It supports DC 3–24V input, with adjustable speeds from 6 RPM to 210 RPM and reduction ratios from 40:1 to 1000:1, enabling precise adaptation to low-speed high-torque applications. The 6mm dual output shafts and 46×32mm compact housing allow flexible installation, while its 80% efficiency and rated current ≤0.6A ensure energy-efficient performance. It supports forward/reverse rotation (via polarity reversal or speed controller) and stepless speed adjustment, making it suitable for robotics, DIY projects, electronic locks, range hoods, and smart devices. With a gear load capacity of up to 30KG, it maintains reliable operation under continuous or intermittent loads, providing a dependable solution for small-scale automation and motion control needs.

• Dual Output Shaft & Worm Gear Reduction Design Features a 6mm dual output shaft and worm gear reduction system, with a compact 46×32mm housing, ensuring stable power transmission and direct compatibility with mechanical linkage components.
• Wide Voltage Compatibility & Adjustable Speed Range Supports DC 3–24V input (6V motor: 3–9V; 12V motor: 6–18V; 24V motor: 12–30V), offering an adjustable speed range from 6 RPM to 210 RPM, with reduction ratios from 40:1 to 1000:1 for precise motion control.
• High Torque & Power-Off Self-Locking Function Delivers a maximum torque of 45 Kg·cm (2.5 N·m) and features a power-off self-locking mechanism, maintaining position stability without external braking, with gear load capacity up to 30KG.
• All-Metal Gear Construction & Efficient Performance Utilizes all-metal worm gears for durable, low-wear transmission, achieving 80% efficiency, with rated current ≤0.6A and stall current ≤3.3A for reliable energy utilization.
• Universal Applicability for Diverse Scenarios Ideal for robotics, DIY projects, electronic locks, range hoods, entertainment equipment, and smart devices, adapting to both intermittent and continuous operation with forward/reverse rotation capability.
